Large Dome Houses

Fully sustainable domes arranged for quality comfort

Large Dome Houses

Large domes are suitable as family house, atelier or café.

The dome is build without a humidity membrane and has been tested for air-tightness / loss of energy, with results of an excellent climate comfort and lowenergy standard.

All materials are fully sustainable with outside non-toxic impregnated spruce-boards, grassturf on the roof, and covered inside with gypsum or birch-plywood.

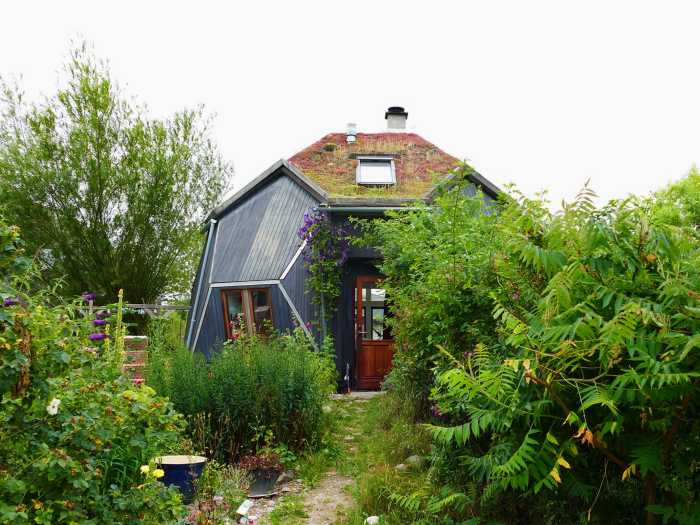

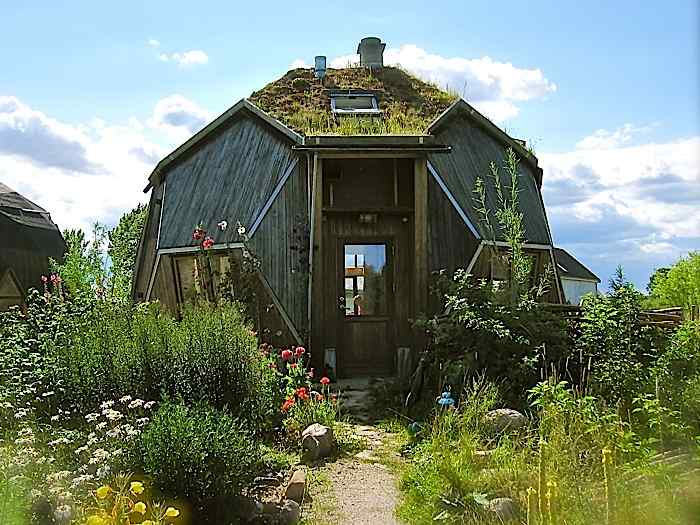

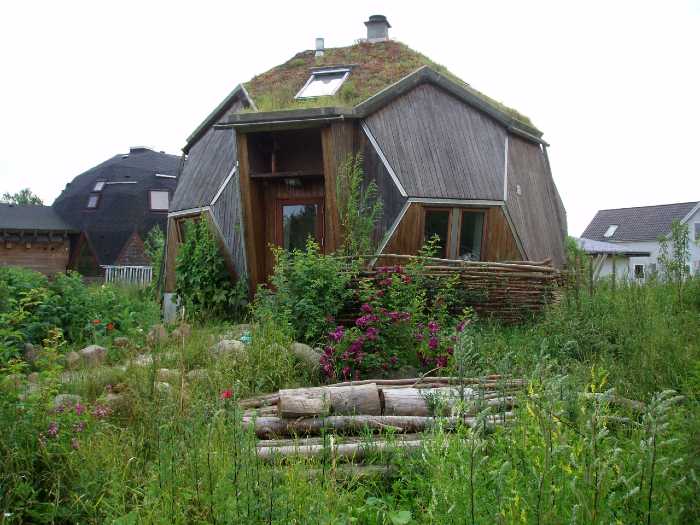

Family dome 56 m²

The large dome at 72,5 m² is a low energy two floor family dome. The building is a fully sustainable dome arranged for quality comfort and proper stay for a small family.

All materials are fully sustainable with outside non-toxic impregnated spruce-boards, grass turf on the roof, and covered inside with gypsum boards. The insulation is 350 mm wood-wool + 50 mm flax on inner section.

The dome is build without a humidity membrane and has been tested by the Danish Technological Institute for air-tightness and energy use, with results of an excellent climate comfort and low energy standard.

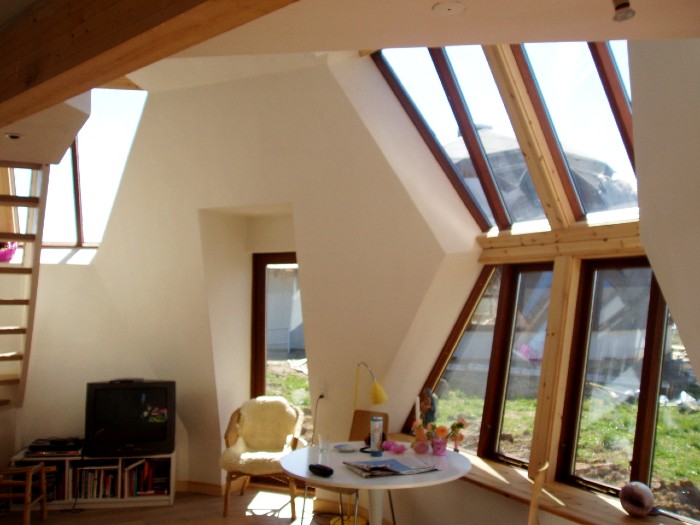

The interior

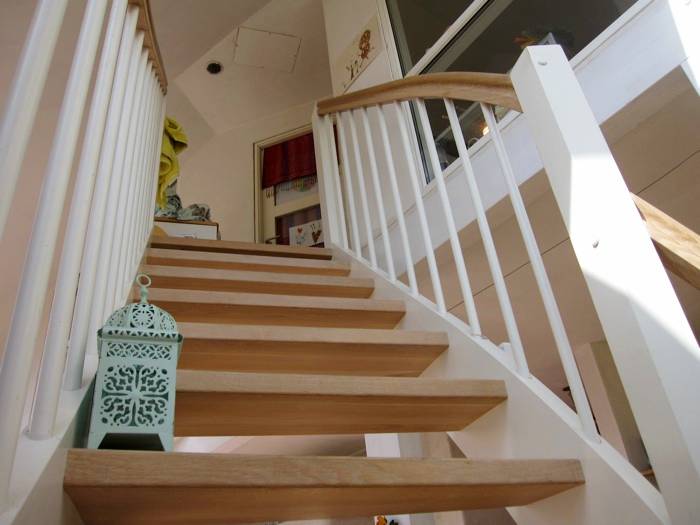

The dome has a spatial kitchen and living room with staircase to first floor with two proper bedrooms . The bath and toilet room is arranged with technician appliances as a hot water storage tank combined for solar energy and a mass stove .

Energy need for heating and hot water is in average 30 kWh/m²/year, and the dome can also be arranged for passive house as zero energy standards.

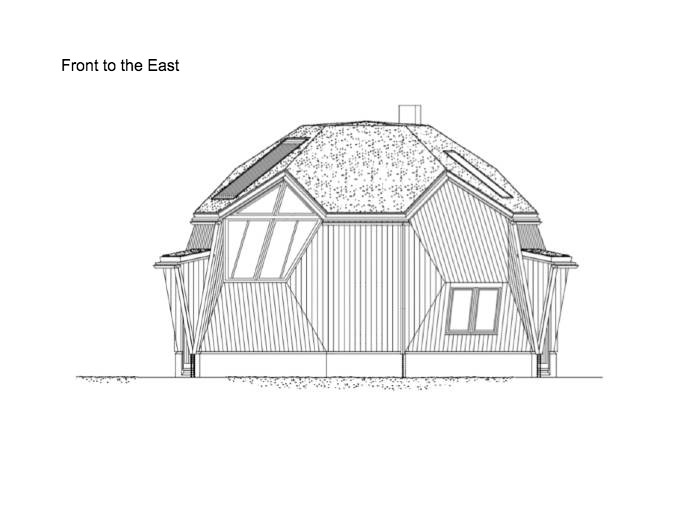

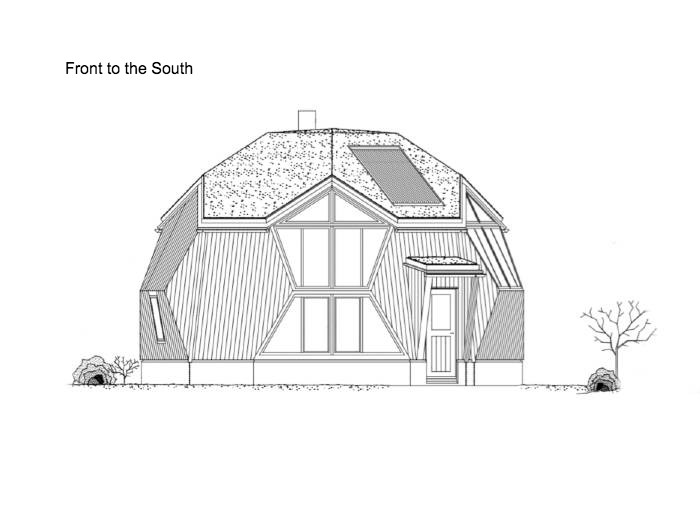

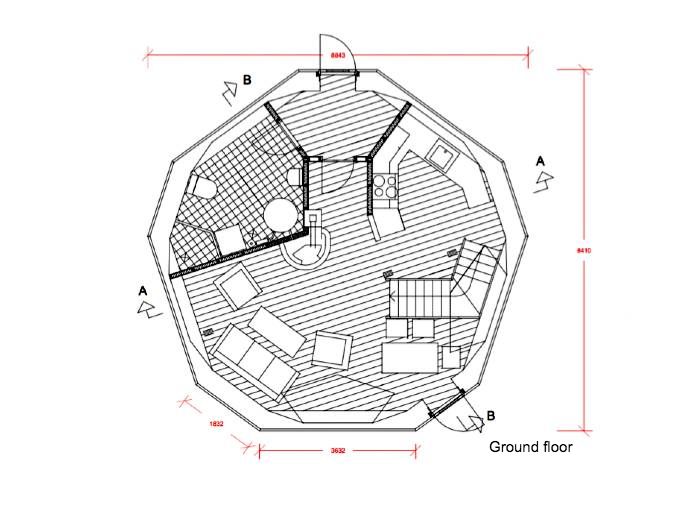

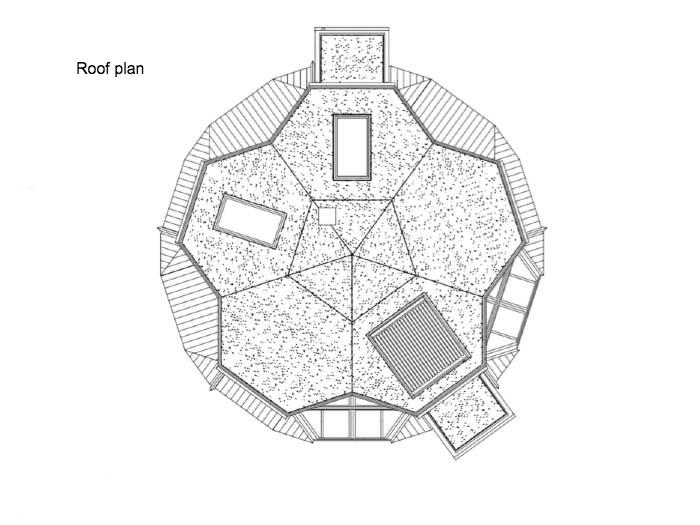

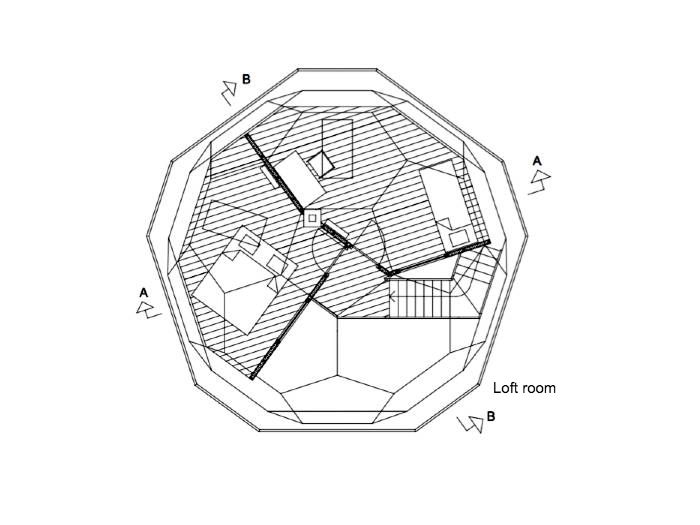

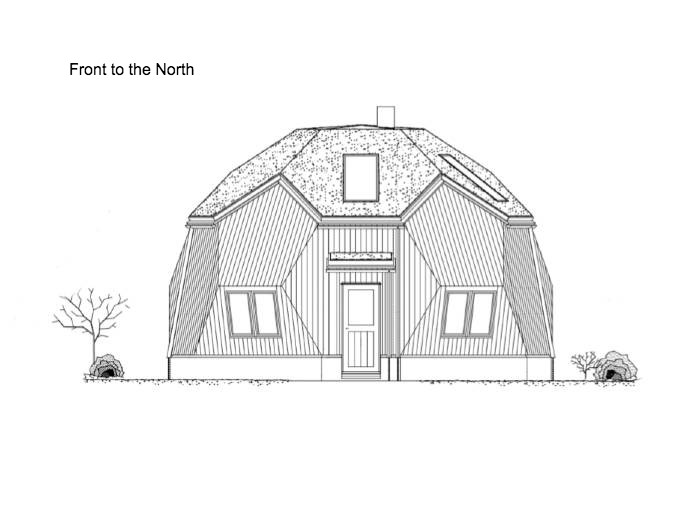

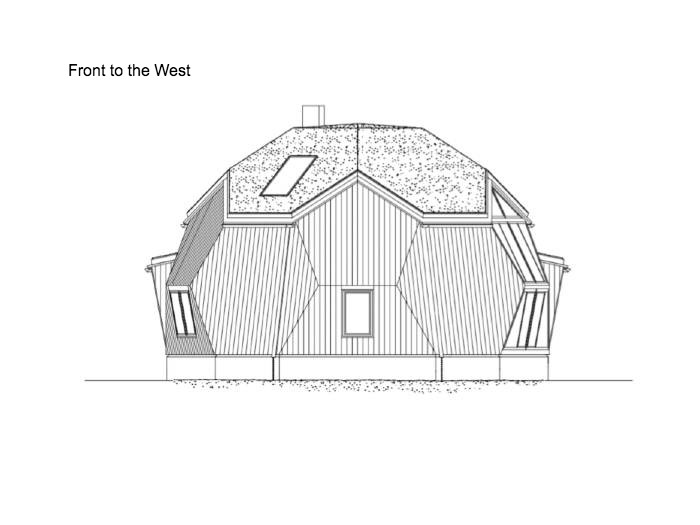

Family dome 56 m² - Plans

The interior is the living room at 22,1 m² and the kitchen at 8,3 m².  From the entrance at 3,5 m² a door is to the 7,5 m² shower/toilet room.

Floor area

Entrance
Living room
Bathroom/toilet
Staircase
Kitchen

3,5 m²
22,1 m²
7,5 m²
2,8 m²
8,3 m²

Ground floor net area

Cross size, basement

44,2 m²

56,8 m²

Dome size, ground floor
Dome size, loft room

44,2 m²
28,3 m²

Floor size in total

72,5 m²

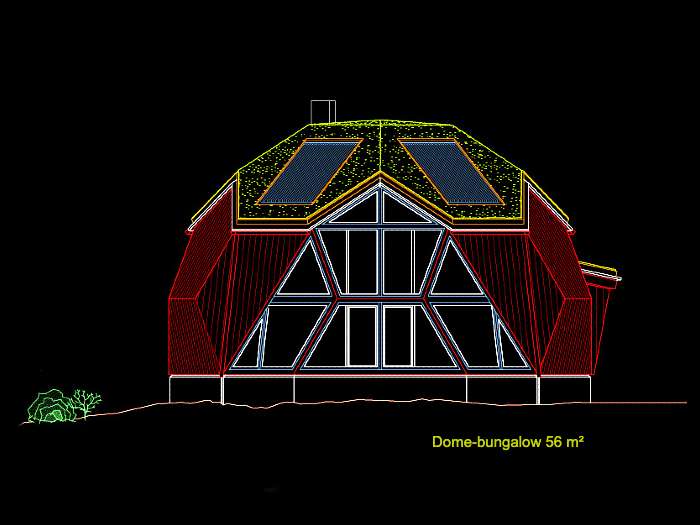

Dome-bungalow 56 m²

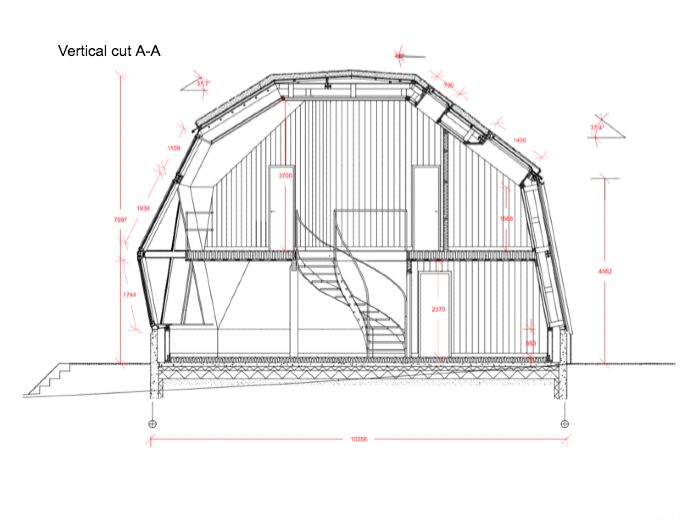

The dome-bungalow is quite similar to the family dome even Vertical cut A–A the interior is a bit different with a smaller bath- and technician room, beside that a single open sleeping room is on first floor with own shower/toilet.

The house is suitable for a young couple or it can be arranged as a summer-lodge.

Dome-Bungalow 56 m² - Tour

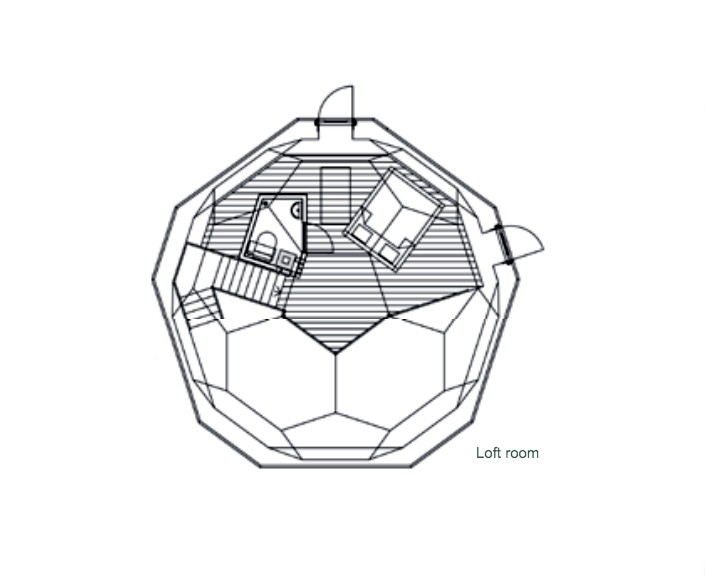

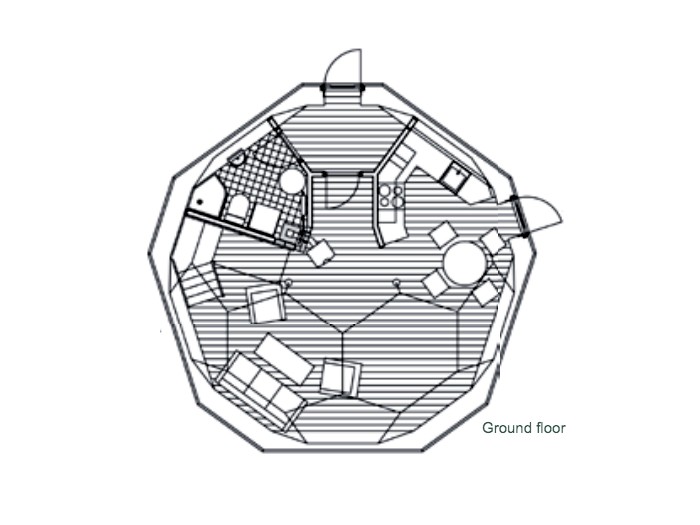

Dome-Bungalow 56 m² - Plans

Dome-Bungalow 56 m² - Plans

Floor area

Entrance
Living room
Bathroom/toilet
Kitchen

3,8 m²
30,2 m²
4,3 m²
5,3 m²

Ground floor net area

Cross size, basement

43,6 m²

56,8 m²

Dome size, ground floor
Dome size, loft room

46,7 m²
23,0 m²

Floor size in total

69,7 m²

Family dome 85 m²

The dome at 85 m² (cross size, basement) is a two floor large dome reaching a 130 m² net floor family house. Four bedrooms – three upstairs and a work-room beneath with an open and spatial 37 m² kitchen-daily room.

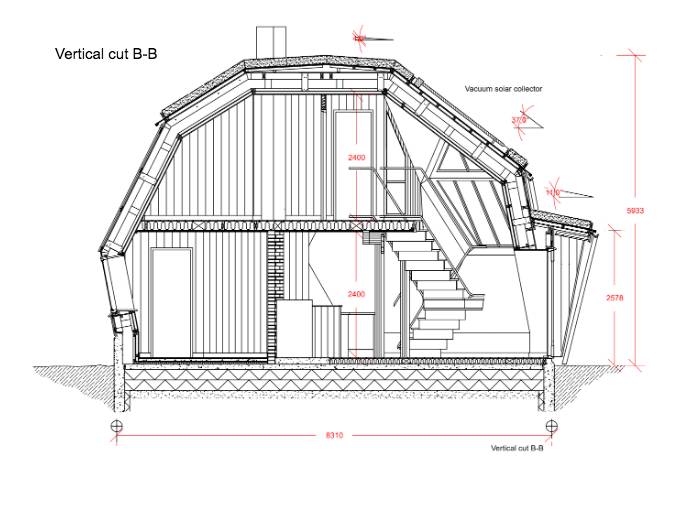

The  inside height of he dome is 6,3 m. The staircase is arranged in mid of the dome and with good access to first floor, and also offers some flexible interior possibilities. A main window arrangement for daily room a.m. can be arranged as shown in the example.

The outside measurement of the dome is 10,3 x 10,8 meter making 84,5 m².

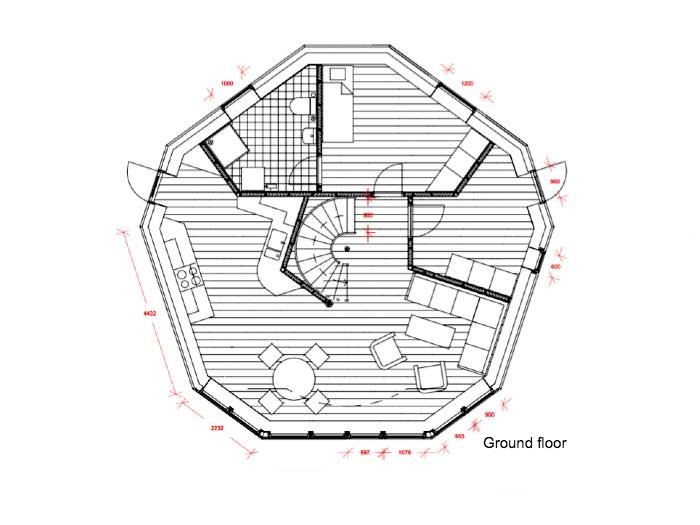

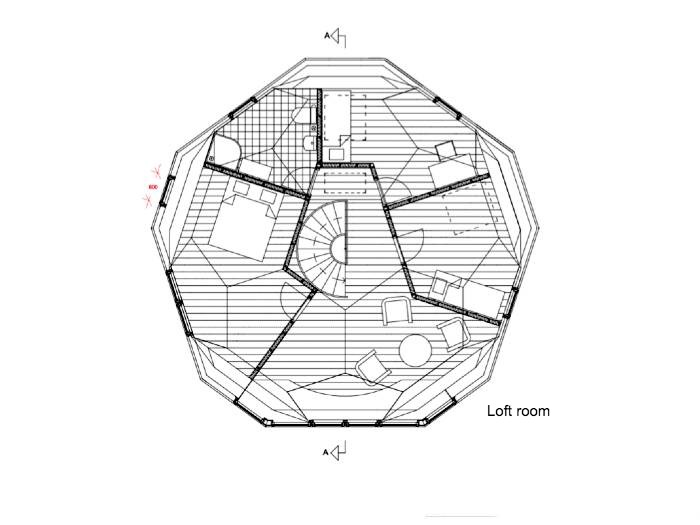

Family dome 85 m² - Floor Plans

Family dome 85 m²

Floor Plans

Floor area

Bedroom
Bathroom/toilet
Entrance
Staircase
Living room / kitchen

11,3 m²
6,4 m²
8,3 m²
3,0 m²
37,2 m²

Ground floor

66,2 m²

Bedroom
Bedroom
Bedroom
Bathroom/toilet
Staircase-area

14,7 m²
10,3 m²
9,6 m²
6,4 m²
19,7 m²

First floor

Floor size in total

61,7 m²

127,9 m²

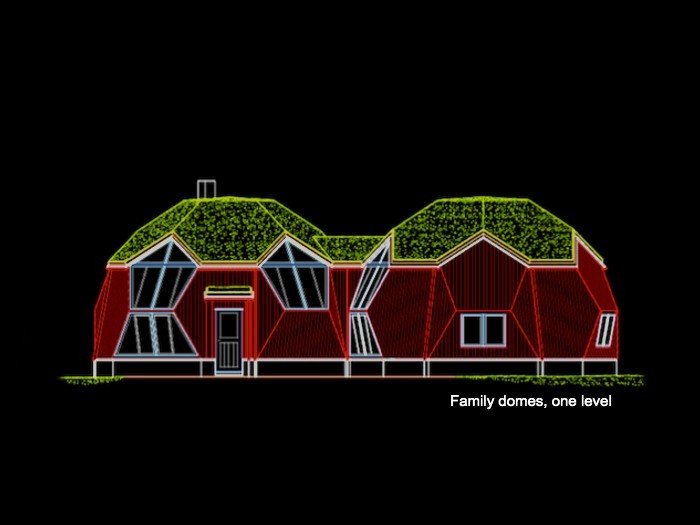

Addition af two 56 m² family domes

Addition af two 56 m² family domes

To achieve proper floor area and interior arrangements, all domes can be build or added to each other – as a pair of domes or even several domes.

The purpose can be different depending on the intention for the building and interior arrangements, but in general these dome-size as an added building serves as a family house with 4 to 5 bedrooms.

Addition of two 56 m² domes make a approx. 150 m² house useable for several purposes – family house, atelier, workshop, machine- or technician house, cafe, restaurant or shop. Here room is for several kids, workroom, bathrooms, technician room as multiple choices for interior arrangements for the living room, kitchen a .s .o

Family domes 56 m² + 56 m² - floor plans

Family domes 56 m² + 56 m²

floor plans

Addition of two – or several domes – can be made by adding to domes to each other in two manners: on same level or on two levels with a 6 step staircase in between.

At same level: Where two hexagons are put across each other for the door-arrangements.

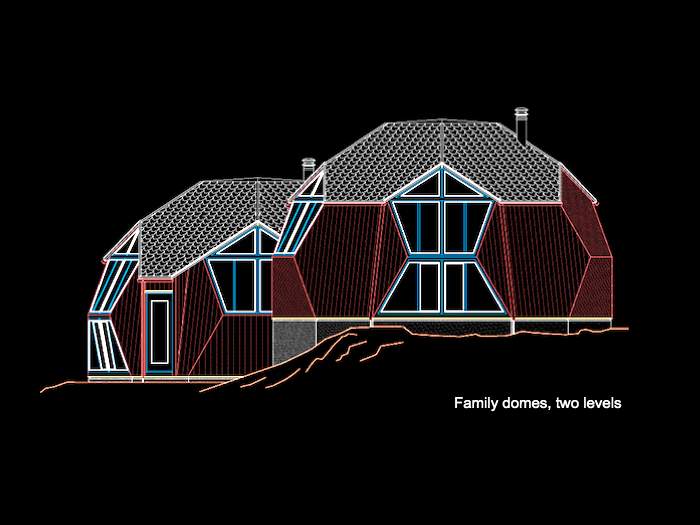

At two levels: By build (lift up) where the quadrangle fi ts to the upper part of a hexagon.

Interior arrangements and room organisation are quite wide for these added domes i.e. with the daily room and parents room in the one dome, and the childrens rooms and kitchen in the other dome.

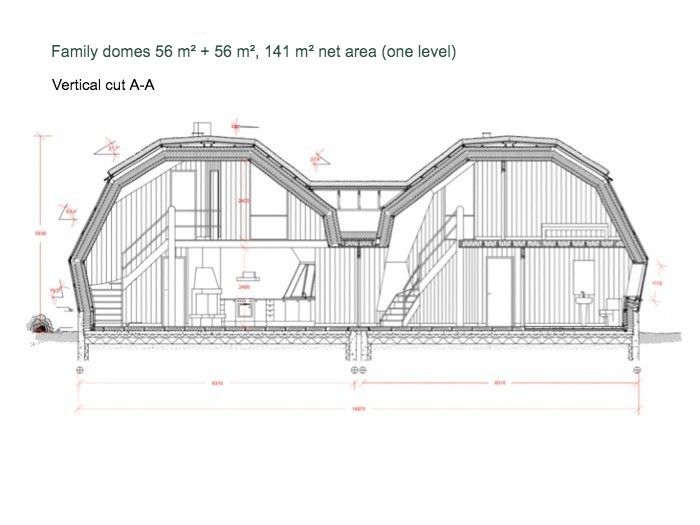

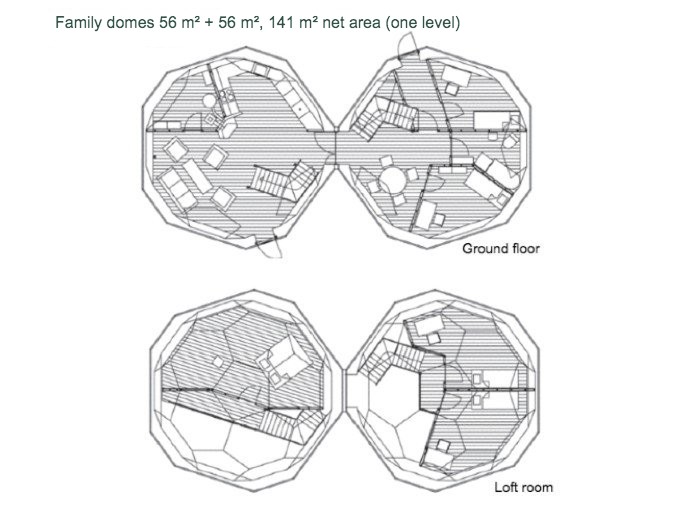

Family dome 141 m² - Floor plans

Family dome 141 m²

Floor plans

Ground floor area

Entrance
Daily room
Bedroom
Bathroom/toilet
Bedroom
Living room
Kitchen
Workroom
Staircase

4,6 m²
10,4 m²
7,8 m²
5,7 m²
8,8 m²
25,4 m²
10,5 m²
6,6 m²
2,8 m²

Ground floor net area

Gross size, basement

89,0 m²

113,6 m²

Loft room area

Bedroom 1
Bedroom 2
Bedroom 3
Balcony 1
Balcony 2

22,1 m²
12,2 m²
11,9 m²
3,8 m²
2,3 m²

Ground floor net area

Ground floor
Loft room

52,3 m²

89,0 m²
52,3 m²

Floor size in total

141,3 m²

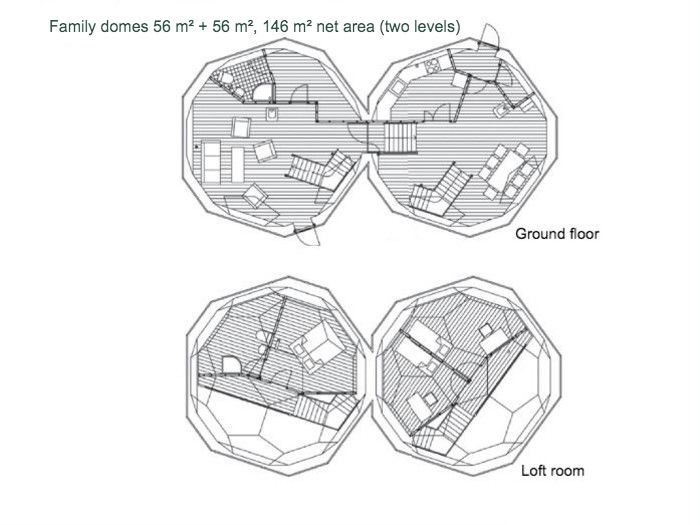

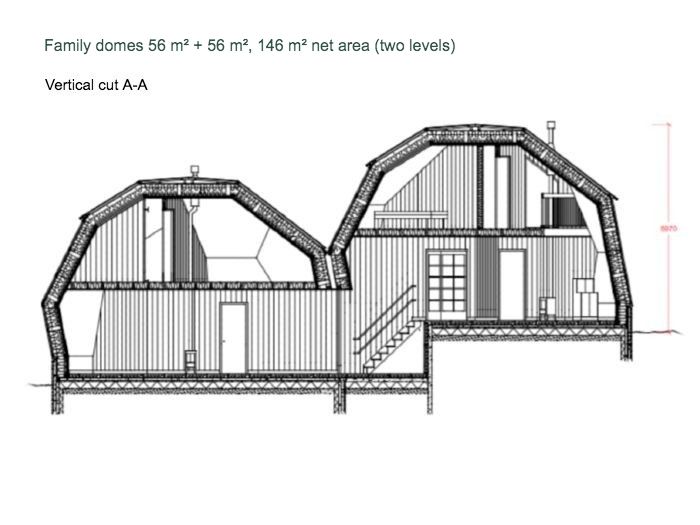

Family dome 146 m² - Floor plans

Family dome 146 m²

Floor plans

Ground floor area

Entrance
Daily room
Tech. room
Available room
Living room
Kitchen
Bathroom/toilet
Mid. staircase
Staircase x 2

2,3 m²
27,2 m²
1,4 m²
6,9 m²
30,0 m²
8,2 m²
3,6 m²
1,8 m²
3,0 m²

Ground floor net area

Gross size, basement

87,4 m²

113,6 m²

Loft room area

Bedroom 1
Bedroom 2
Bedroom 3
Bathroom/toilet
Balcony 1
Balcony 2

14,0 m²
10,0 m²
12,0 m²
8,9 m²
7,0 m²
7,0 m²

Ground floor net area

Ground floor
Loft room

58,9 m²

87,4 m²
58,9 m²

Floor size in total

146,3 m²

Small Domes

Small domes at 25 m² or 31 m² for sparetime cottage, family stay for some weeks, eco-tourism or housing.

Medium Domes

The medium dome has more height than the smaller domes, and can be interiored with a first floor room at 13 m².
